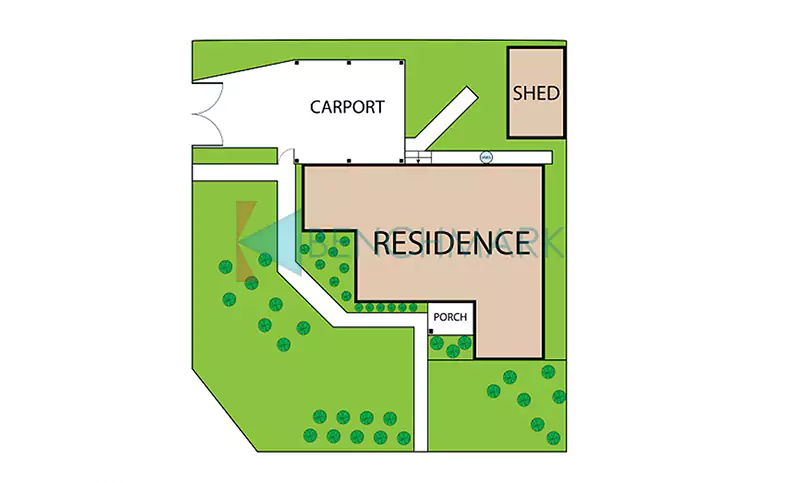

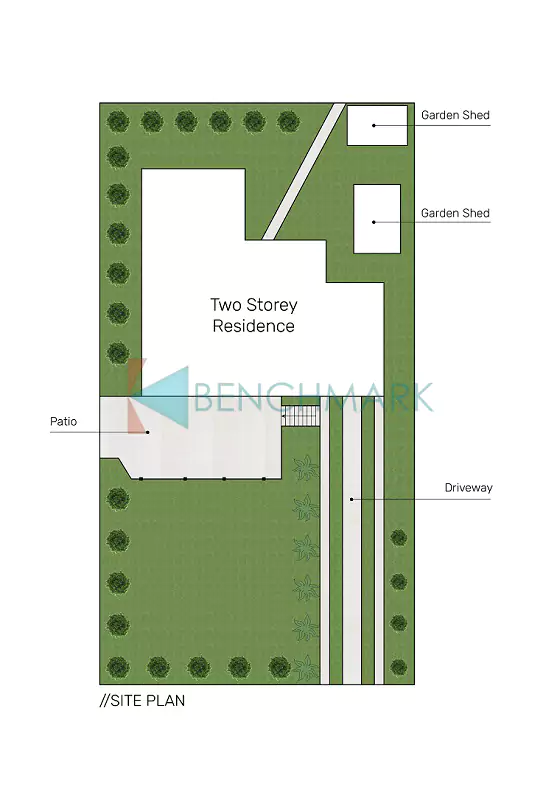

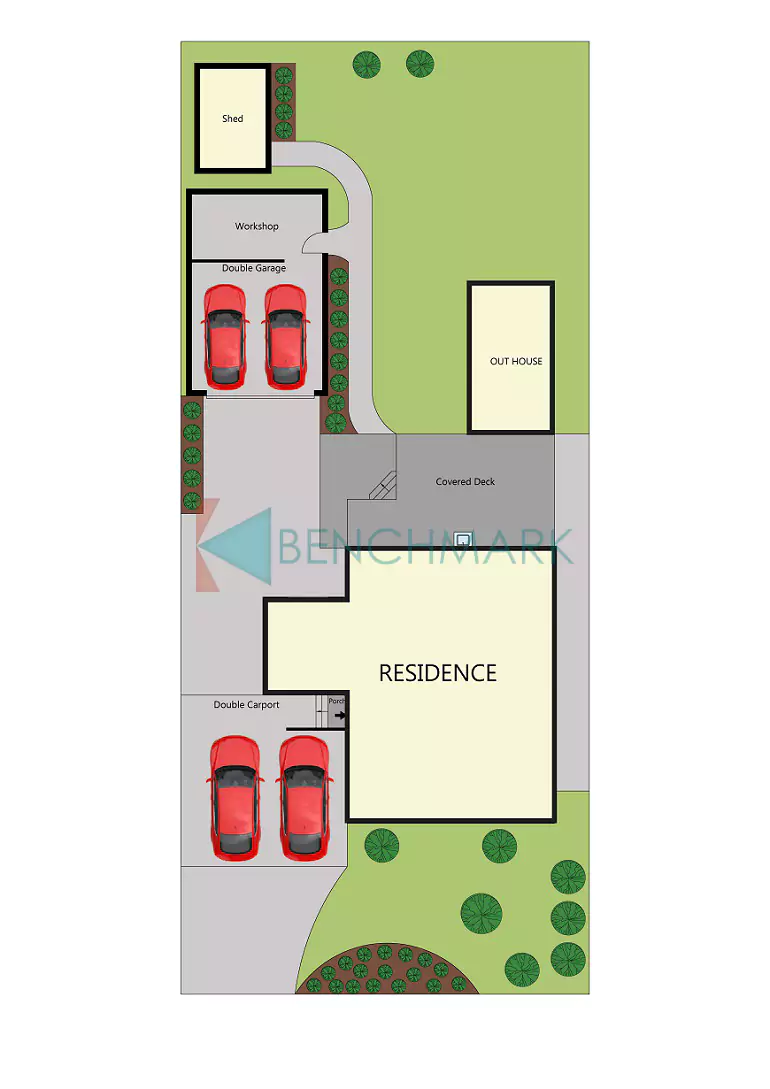

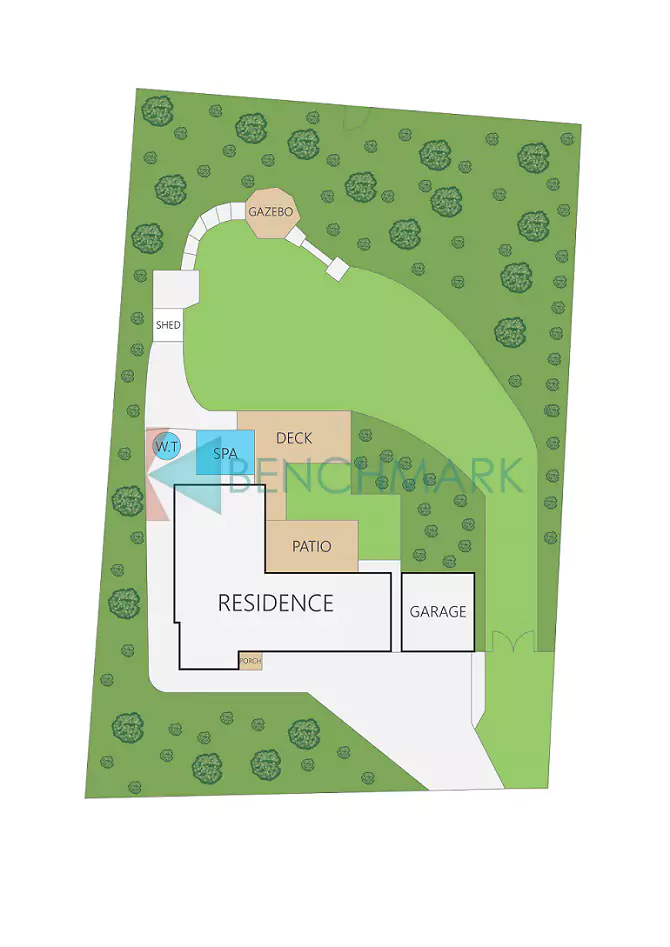

Site Plans

Quite noteworthy and most requested item along with 2D plans is a Site Plan that helps you to figure out the entire context of your property with the representation of landscape, a complete treat to a user to know about building surrounds and accessibilities, of course! A site plan is a large-scale 2D drawing that showcases the full extent of a site for proposed future developments. These are mostly used for planning purposes and are created after thorough site investigations and desk studies.

Site Plans

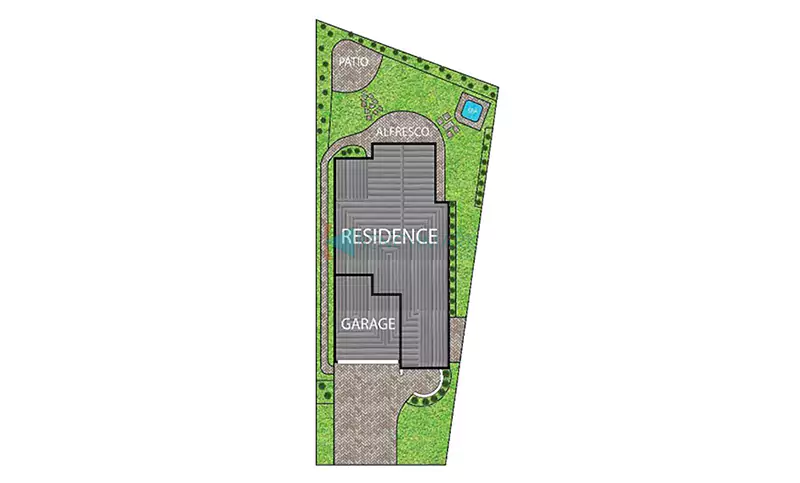

We Create & Deliver Comprehensive Site Plans

We Create & Deliver Comprehensive Site Plans

For all types of building approvals, particularly while developing a new housing or real estate project, site plans are mandatory. A site plan is designed according to the building bylaws of concerned authorities of a specific region, which is why it requires special attention to detail.

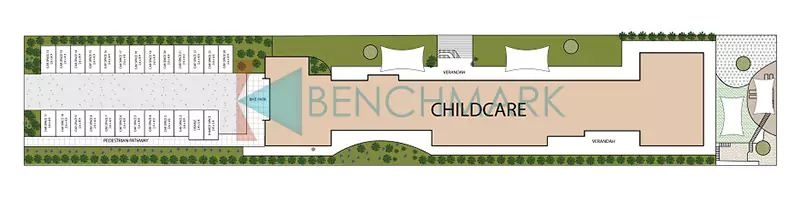

Site Plan Design Services for All Industries

Benchmark Studio provides creative and comprehensive site plan design services for residential, industrial, and commercial sectors. Our site plan experts use their extensive experience and insight to create stunning and detailed plans that not just approve but help the project to sell quickly as well.

Site Plan Design Services for All Industries

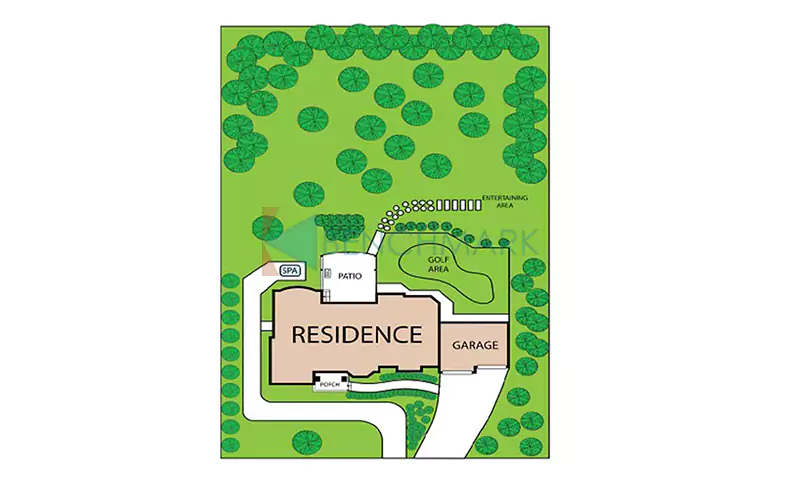

Rising Above Scales

Typically, site plans are likely to be made at a scale of 1:500 or 1:200, depending on the size of the project. However, there can be some exceptions. For instance, some small projects may require larger scales and vice versa. There can also be several plans pulled together on a very small-scale plan, depending on the requirement and complexity of the project.

Rising Above Scales

Holistic Information Presents an All-Inclusive View

The information on a site plan may differ according to each site plan. However, a typical site plan has the following elements:

  • Title block
  • Directional orientation
  • Key dimensions & materials
  • Site boundaries including delineation of adjacent properties
  • Location of the project with its surroundings
  • Roads, parking areas, trees, green belts, and elements of landscape
  • Right of support and more

If the site is complex, the information may also include some additional site items.

Holistic Information Presents an All-Inclusive View

Benchmark Creates Impactful Site Plans

Bring your sites to visual life with Benchmark Studio’s alluring site plan design service. For packages and details, feel free to get in touch with us.

Benchmark Creates Impactful Site Plans

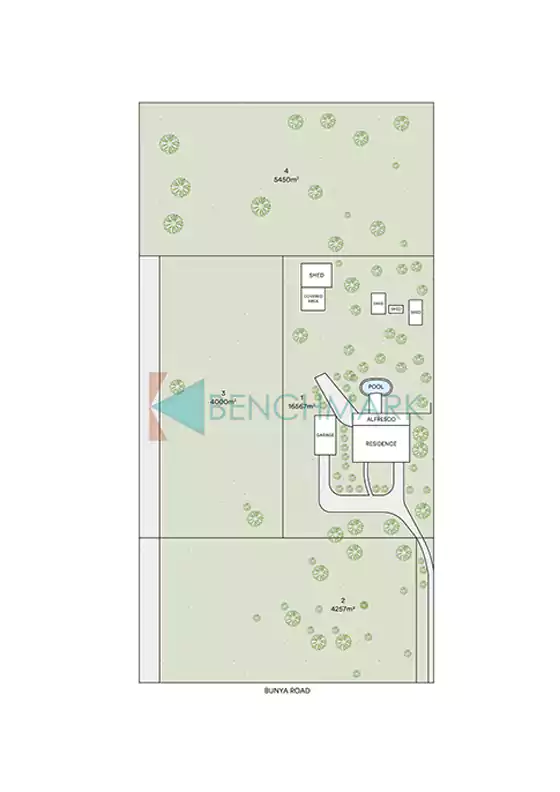

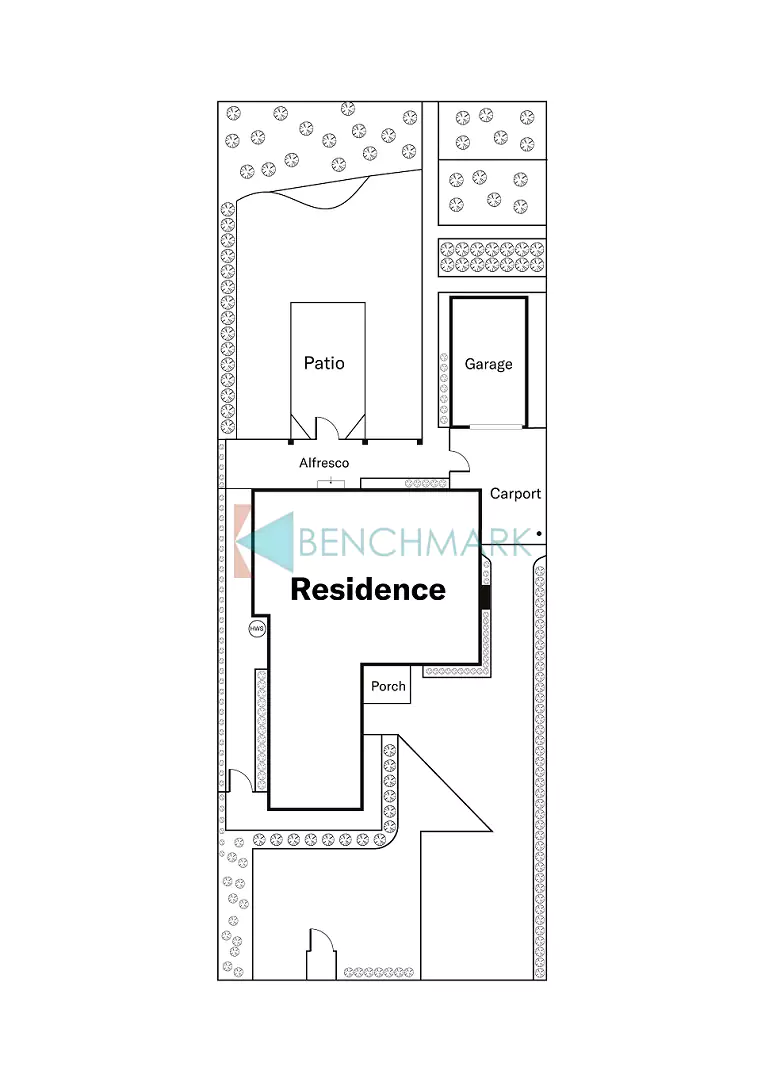

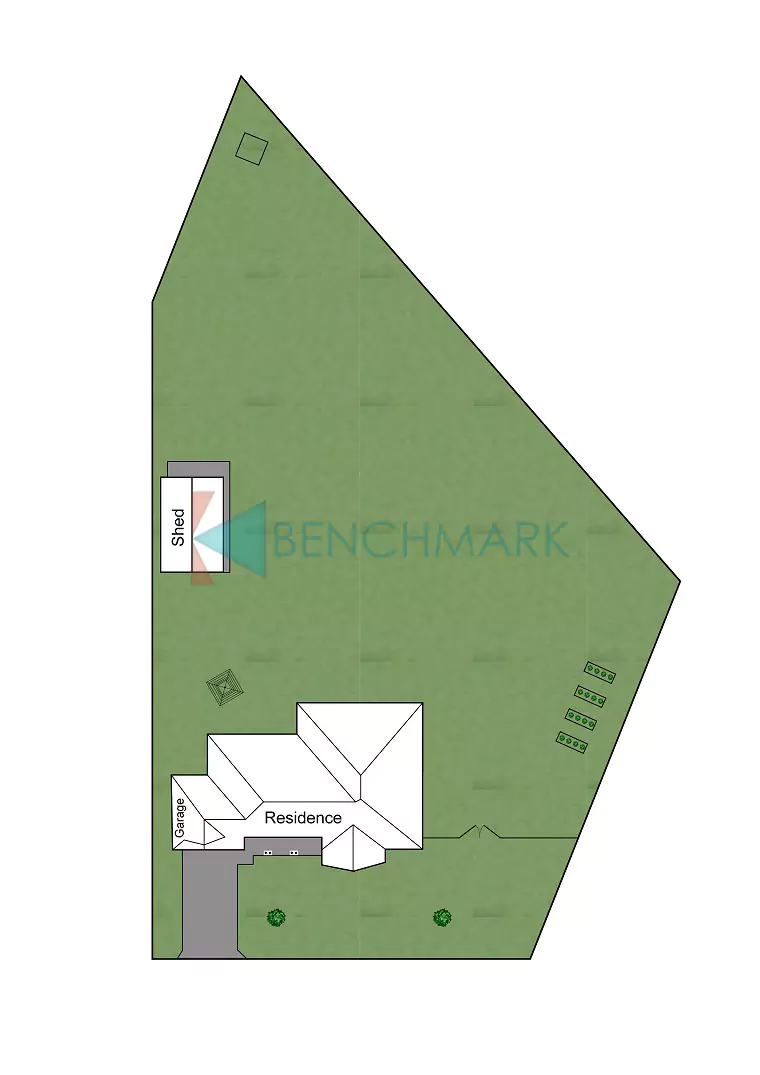

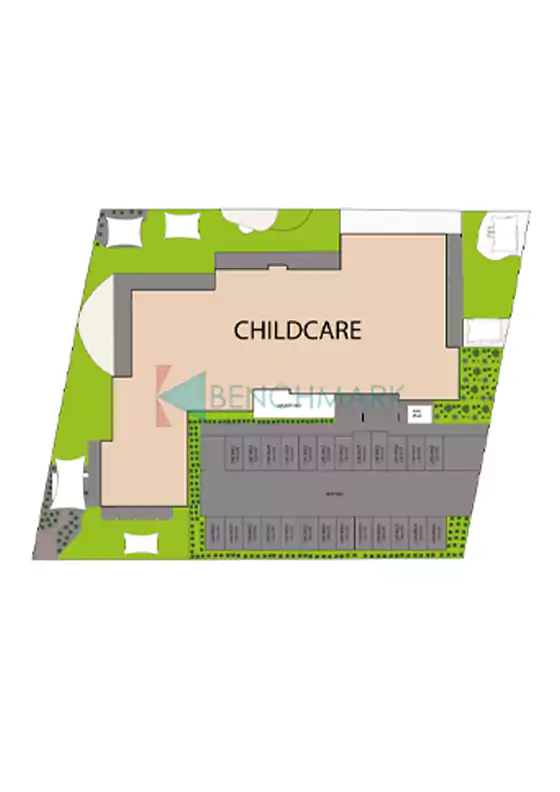

Portfolio

Have a look at our previous work.
